Tests Formula Builder


Tests Formula Builder

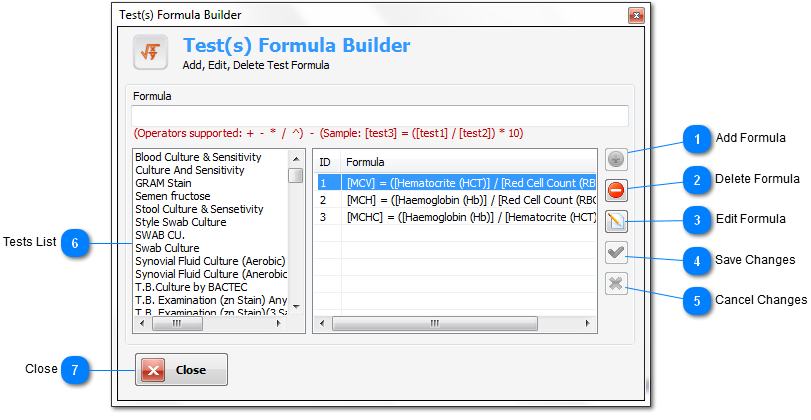

From this dialog window you can manage your tests formulas list by add, edit, or delete formula(s).

The supported operators in the formula builder are : plus(+), minus(-), division(/), power(^).

Firstly you must select the test which you want to create a formula for it from the left side tests list and double click on it. It'll be add to formula text field inside brackets (ex. [test3]), then type equal character ( = ).
Secondly enter the right side of the equation depending on another test value or any mathematical operation to finalize your formula.

Note: test formula is used to automate the calculation of test value field in Tests Result window.

Formulas list right click menu
  • Export to Excel : export current formulas records to MS Excel application, but MS Excel must be installed on same PC.
  • Export to CSV : export current formulas records to comma separated file format and save it on any specified folder.

1

Add Formula

1. Add Formula
Add the entered formula to tests formulas list.
This button will be enabled after entering any character on the formula text field.

2

Delete Formula

2. Delete Formula
Delete the selected formula(s) from tests formulas list.
This button will be enabled when you select any formula.

3

Edit Formula

3. Edit Formula
Edit the selected formula.
This button will be enabled when you select any formula.

4

Save Changes

4. Save Changes
Save the changes which made on the selected formula.
This button will be enabled after press edit.

5

Cancel Changes

5. Cancel Changes
Cancel changes of the selected formula.
This button will be enable after press edit.

6

Tests List

6. Tests List
List of all existing medical tests sorted by test ID.

7

Close

7. Close
Close the dialog window.
